Wi-Fi Heatmaps: What They Are and Why You Need One

December 15, 20259 min read

small-business wifi network-infrastructure

TL;DR: What is a Wi-Fi heatmap and why do you need one?

A Wi-Fi heatmap is a color-coded overlay (usually on your floor plan) that shows where your wireless signal is strong, weak, or basically “abandon hope all ye who Zoom here.” You need one because guessing where to place access points is like throwing sprinklers on a roof and hoping the lawn gets watered—heatmaps replace vibes with data so you get consistent coverage, fewer dead zones, and fewer “the internet hates me” support tickets.

Bonus: when you plan it right up front, you often buy fewer access points—and avoid the expensive, disruptive “move it… no, move it again” phase.

Why does Wi-Fi always fail in the one room that matters most?

Because Wi-Fi isn’t magic—it’s physics with a marketing budget.

If you’ve ever watched a Teams call freeze right as you’re about to close a deal… you know the pain. It’s always the conference room. Or the warehouse aisle. Or the back office where the POS system lives. Wi-Fi has a special talent for failing where your business bleeds money the fastest.

Here’s the dirty secret: most Wi-Fi networks are placed like furniture.
“We’ll put an access point here because… it feels right.”
That’s not engineering. That’s interior decorating.

And it’s exactly why Wi-Fi heatmaps exist.

What is a Wi-Fi heatmap?

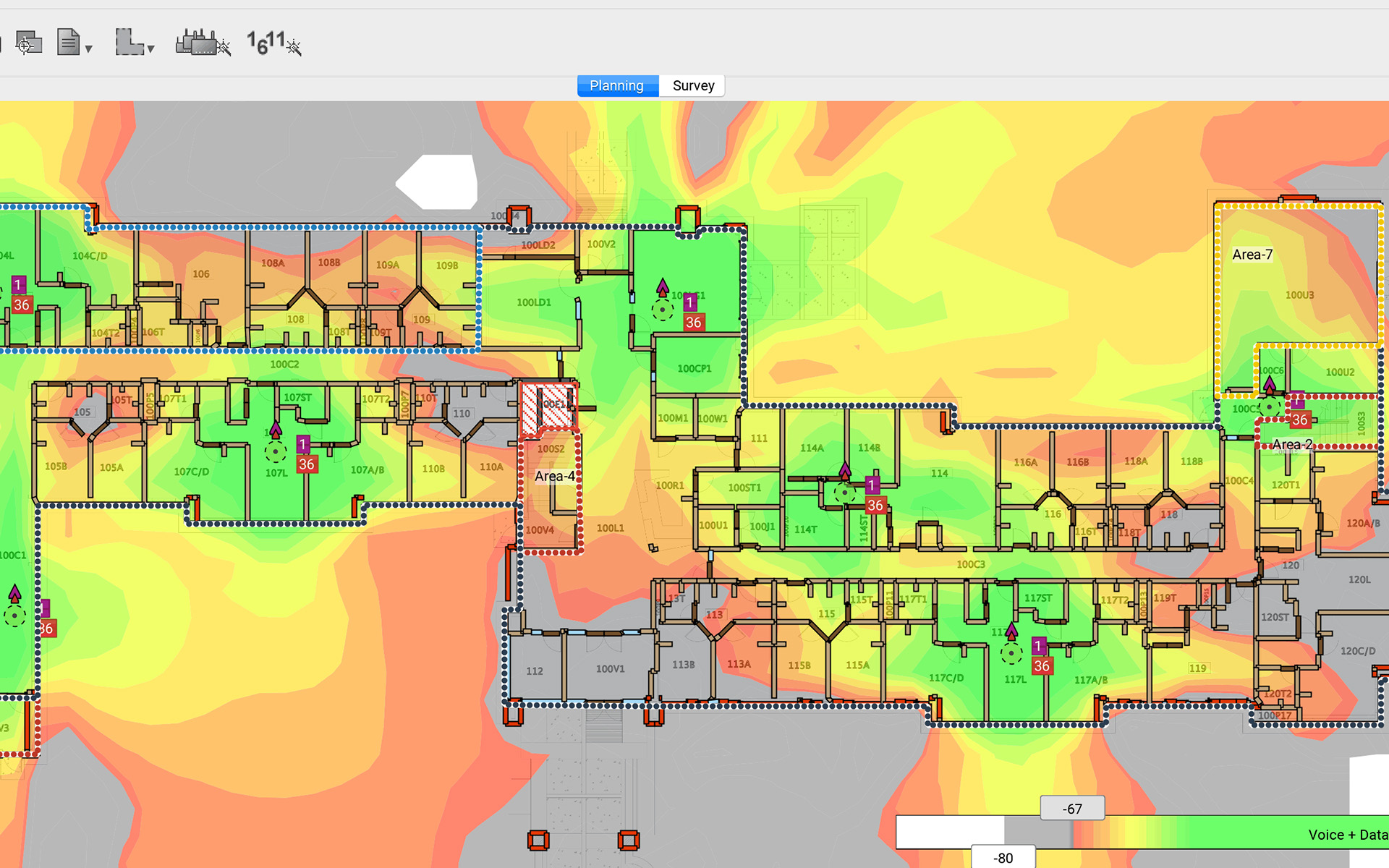

A Wi-Fi heatmap is a visual map of your Wi-Fi coverage and signal strength, typically laid over your building’s floor plan so you can see strong areas, weak spots, and dead zones in the context of real rooms and real work.

Definition box (citation-ready)

Wi-Fi heatmap: A color-coded visualization (usually over a floor plan) that shows wireless signal coverage/strength—and often other metrics like interference or capacity—so you can make better decisions about access point placement and performance.

What it looks like in practice

Most heatmaps use a “hot/cold” scheme—greens for strong coverage, yellows/oranges for meh, reds for weak or dead zones. But here’s an accessibility-friendly note: don’t rely on color alone. A good heatmap also ties to measurable thresholds (signal level, SNR, etc.) so the map is meaningful even if you’re colorblind or printing in grayscale.

What a heatmap can measure (without turning this into a Wi-Fi PhD)

Depending on the tool and survey method, heatmaps can visualize things like:

Signal strength (how loud your Wi-Fi “voice” is)
Signal-to-noise ratio (SNR) (how clearly devices can “hear” it over background noise)
Interference (the RF equivalent of ten people talking over each other)
Capacity / client experience (whether the Wi-Fi can handle actual humans doing actual work)

What’s the deal with Wi-Fi heatmaps (and why are they better than “move the router”)?

A heatmap is what happens when you stop troubleshooting Wi-Fi like a ghost hunter and start treating it like an infrastructure system.

Yes, you can walk around with a phone app and do a basic heatmap. That can be helpful for small spaces and quick diagnosis.

But for businesses—especially offices, clinics, warehouses, schools, and multi-room buildings—the real value comes from professional-grade surveys and predictive modeling.

The “site survey” part matters

Heatmaps are commonly produced during a wireless site survey, which tests Wi-Fi strength throughout a building and reveals why some areas have weak coverage—things like thick walls, interference, poor AP placement, or large equipment blocking signal.

In other words: if you’ve got a warehouse full of metal racks, a breakroom microwave, and a conference room wrapped in glass… your Wi-Fi isn’t being “dramatic.” It’s being accurate.

The underrated power move: pre-construction heatmaps

Here’s where things get spicy (and where most businesses miss the opportunity):

We use specialized software and custom tooling to build pre-construction Wi-Fi heatmaps—before the drywall is up and before you’ve bought a pallet of access points.

We model:

What the walls will be made of
Ceiling heights
Layout and expected coverage needs
The specific models of access points we’re considering

Tools like Ekahau even support simulated heatmaps in the design phase, then you validate with real-world surveying.

Translation: you get a blueprint for Wi-Fi that’s actually a blueprint.

Why do you need a Wi-Fi heatmap?

You need a heatmap because it saves you from three expensive things: downtime, overbuying, and rework.

1) You can’t fix what you can’t see

A heatmap makes invisible RF problems visible—dead zones, weak spots, and coverage gaps—so you’re not “debugging” Wi-Fi with prayers and hallway pacing.

2) It helps you place access points like an adult

Heatmaps show where to add—or reposition—access points for consistent coverage and performance.

And in real projects, when customers pick AP locations based on where they want them instead of where they should be… they usually end up with too many.

With proper planning up front, we often reduce the AP count by 40% or more by designing for coverage and capacity instead of “let’s just blanket the building.” (Results vary by layout, materials, and density—but the pattern is real.)

3) It exposes interference and “Wi-Fi murder weapons”

Thick walls, interference sources, and large equipment can create weak spots and dead zones—heatmaps help you spot those patterns fast.

4) It can reveal signal leakage (a sneaky security + performance issue)

SolarWinds notes heatmaps can help identify signal leakage and overlaps—useful for spotting where your Wi-Fi might spill into places you don’t want (like public areas or neighboring suites).

5) It’s cheaper than redoing your Wi-Fi after install

The cost of doing this before installation is almost always less than:

relocating access points
re-running cable
patching ceilings
dealing with “why is it worse now?” user revolt

In short: a heatmap is the “measure twice, cut once” of wireless.

Heatmap-driven Wi-Fi vs. guess-and-check Wi-Fi: what’s the real difference?

A heatmap-driven approach replaces trial-and-error with repeatable decisions.

Approach	What it’s based on	Typical outcome	Hidden cost
Guess-and-check placement	“Put an AP where it seems logical”	Overbuilt in some areas, dead zones in others	Time + disruption + rework
Heatmap-driven design	Measured or simulated coverage + requirements	Fewer dead zones, better roaming, clearer capacity planning	Up-front survey cost (usually far cheaper than rework)

Snippet candidates (quotable):

“Wi-Fi heatmaps turn ‘I think’ into ‘I know.’”
“If your Wi-Fi plan is ‘we’ll adjust after install,’ you’re budgeting for chaos.”

What should you watch out for with Wi-Fi heatmaps?

Heatmaps are powerful—but they’re not fortune telling.

Watch out #1: Confusing “signal strength” with “good Wi-Fi”

A strong signal doesn’t always mean a great user experience. You can have strong signal and still get poor performance due to interference, congestion, or too many devices fighting over airtime. (This is why professional tools include metrics beyond simple signal level.)

Watch out #2: Designing for coverage but ignoring capacity

A dental office with 12 devices is different from a warehouse with 150 scanners, tablets, and VoIP handsets. Capacity planning matters. SolarWinds calls out that heatmapping can support capacity planning and access point placement decisions.

Watch out #3: “One heatmap = done forever”

Your environment changes. Furniture moves. Walls get added. Warehouses get new racks. Neighboring networks appear. A heatmap is a snapshot—and sometimes you need a re-check.

How do you get started with a Wi-Fi heatmap (without derailing your business)?

Start by deciding what kind of truth you need: quick visibility or design-grade certainty.

Step 1: Define what “good Wi-Fi” means for your business

Answer these in plain English:

Where does Wi-Fi need to work perfectly? (conference rooms, POS, warehouse aisles, exam rooms)
How many devices are online at peak?
Are you doing voice/video, or mostly email and web?
Any “problem children” areas already?

Step 2: Choose the right heatmap method

Basic walkthrough heatmap: good for troubleshooting and quick wins
Professional site survey heatmap: best when Wi-Fi impacts revenue, operations, or customer experience
Predictive (pre-construction) heatmap: best when you’re building/moving/remodeling and want to avoid expensive mistakes

Step 3: Design AP placement around reality (not aesthetics)

We use specialized software and custom tooling to model wall materials and ceiling heights, then select AP models and placements to maximize coverage and availability.

This is where that “40% fewer APs” outcome often shows up: instead of buying “just in case” gear, you buy what the building actually needs.

Step 4: Validate after installation (because reality always gets a vote)

Even predictive designs should be validated. The goal is boring Wi-Fi—Wi-Fi that disappears into the background so your team can work.

Quick checklist: what to gather before a professional heatmap

Floor plan (even a basic one)
Ceiling heights + any weird ceiling materials
Wall types (drywall, concrete, glass, metal, etc.)
Where people actually work (not just where desks are “supposed” to be)
Known problem areas + peak usage times

Frequently Asked Questions

Can’t I just use a mesh system and call it a day?

Sometimes. But mesh is not a substitute for design in complex buildings. If you have thick walls, high density, or a space where Wi-Fi impacts revenue, you want a plan—not vibes.

Do Wi-Fi heatmaps show internet speed?

Not directly. They show wireless performance indicators (signal, SNR, interference, sometimes throughput/capacity), and those strongly influence real-world speed and reliability.

When should I get a pre-construction heatmap?

If you’re moving, remodeling, expanding, or building new space—before you buy gear and run cable. Simulated heatmaps can test AP locations early, then you validate later.

How often should I redo a heatmap?

Any time the environment changes significantly (renovation, new shelving, higher headcount, new neighbors), or if users start complaining and you don’t want to play whack-a-mole.

Is a heatmap only for big companies?

No. It’s for any business where Wi-Fi downtime costs money, time, reputation, or sanity.

The bottom line: is a Wi-Fi heatmap worth it?

Yes—because a Wi-Fi heatmap is the cheapest way to avoid the most expensive wireless mistake: installing first and discovering reality later.

A good heatmap:

finds dead zones before your users do
improves access point placement and performance
reduces interference-driven chaos
can even highlight signal leakage risks
